Apex Digital Scales with Mechanical Height Rods

Key Features

SKU: DET-APEX

apex® Digital Clinical Scale:
• 600 lb x 0.2 lb / 300 kg x 0.1 kg Capacity
• 17 in W x 17 in D x 2.75 in H platform size
• Mechanical height rod
• Eye-level weight display and column
• 0.75-inch-high LCD readouts
• Body Mass Index calculation
• Mother/Baby Weighing Function
• Power: Battery or AC Adapter (not included)
• 1 RS232 serial port and 1 micro USB-B port
• HL7 IEEE 11073 compliant
• Overall Dimensions: 17 in W x 19.5 in D x 53.3 in H / 43 cm W x 49.5 cm D x 135.3 cm H
• Height Rod Measures: 24” (2’) - 86” (7’2”) x 0.125 in / 60 cm - 218 cm x 0.1 cm
• Net Weight: 31 lb / 14 kg
• Shipping Weight: 40 lb / 18 kg
• Shipping Dimensions: 58 in x 20 in x 6 in / 147 cm x 51 cm x 15 cm

Manufacturer

MFR: Detecto

Apex Digital Scales with Mechanical Height Rods

Models: APEX-AC

Variant

Price:

$750.00

Quantity:

Request a Quote

Call Us

DETECTO’s apex® eye-level digital physician scales feature inline mechanical height rods and an extra-wide, flat platform measuring 17 in W x 17 in D x 2.75 in H. The apex® scale features 600 lb x 0.1 lb / 270 kg x 0.05 kg capacity, 0.75-inch-high clinical-blue LCD weight readouts, units locking into kilograms or pounds, BMI calculation, AC adapter included, 1 RS232 serial port and 1 micro USB-B port, HL7 IEEE 11073 compliance, Wi-Fi/Bluetooth and Welch Allyn connectivity (available on some models), dual wheels for transport, sturdy column construction, and integral bubble level. The APEX is NTEP certified for weighing accuracy with patient dosing.

Brand	Detecto

Brochure

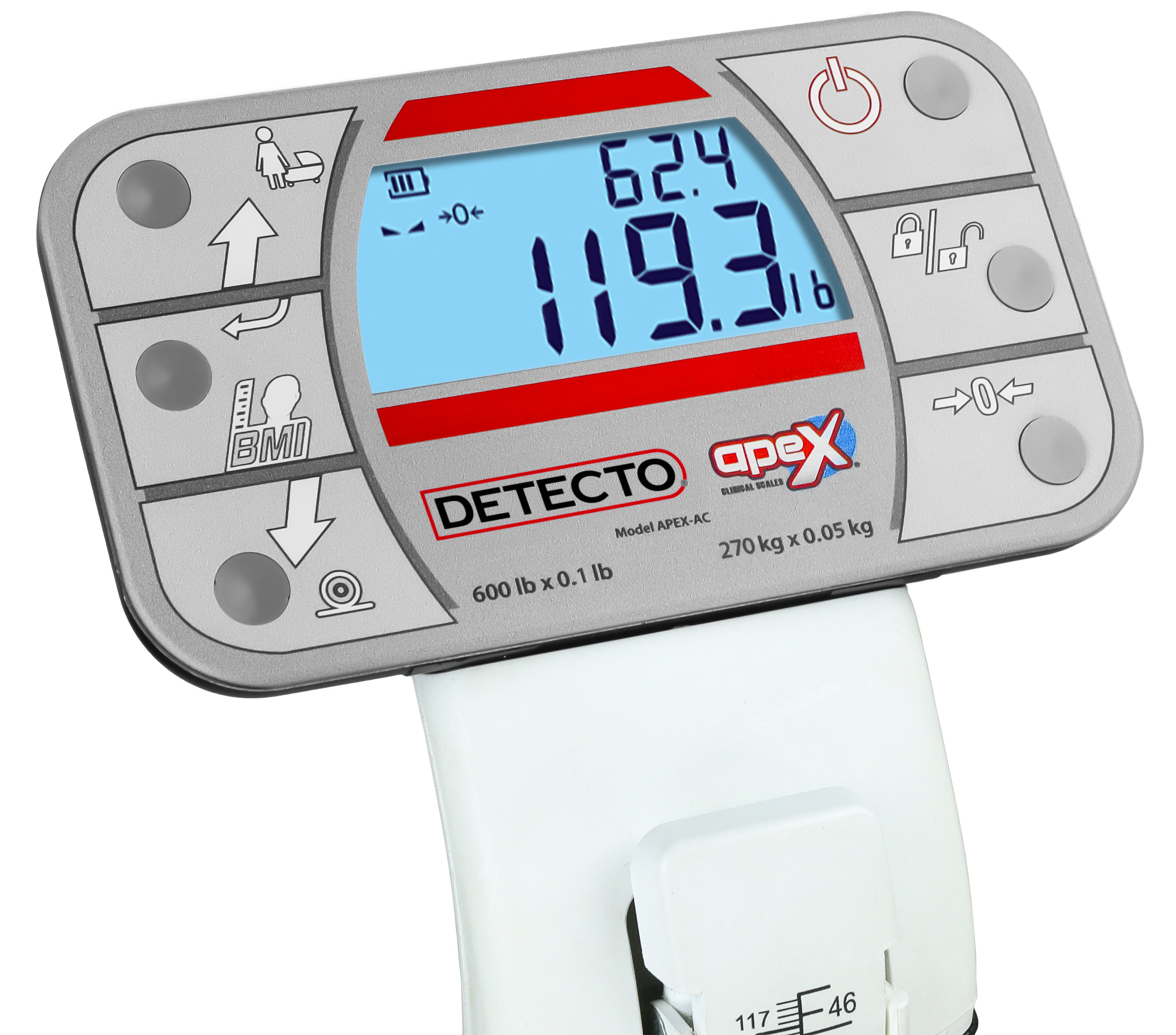

0.75-Inch-High LCD Weight Readouts
Units Locking into Pounds or Kilograms
NTEP Certified for Weighing Accuracy with Dosing Patients
Wi-Fi / Bluetooth Models Available for Wireless EMR/EHR
Mother / Baby Function Factors the Weight of Infants and Toddlers Held by an Adult
1 RS232 Serial Port and 1 Micro USB-B Port
6 Easy-to-Use Buttons
600 lb x 0.1 lb / 270 kg x 0.05 kg Capacity
BMI Calculation
Dual Integral Wheels
HL7 IEEE 11073 Compliant (standard)
Inline Mechanical Height Rod
Platform Size: 17 in W x 17 in D x 2.75 in H
AC Adapter Included
Welch Allyn Connectivity Available for Electronic Medical Records

Capacity: 600 lb x 0.1 lb / 270 kg x 0.05 kg (lb or kg selected upon initialization at start-up)
Platform Size: 17 in W x 17 in D x 2.75 in H / 43.2 cm W x 43.2 cm D x 7 cm H
Weighing/Height Units: Pounds/Inch (lb, in) or Kilograms/Centimeters (kg, cm)
Power: 12 AA batteries (not included) or AC adapter (included)
Height Rod: Mechanical inline height rod
Height Rod Measures: 24” (2’) - 86” (7’2”) x 0.125 in / 60 cm - 218 cm x 0.1 cm
Overall Dimensions: 17 in W x 19.5 in D x 53.3 in H / 43 cm W x 49.5 cm D x 135.3 cm H
Ports: 1 RS232 serial port and 1 micro USB-B port
Device Connectivity: HL7 IEEE 11073 compliant (standard); Welch Allyn® device connectivity available on some models (CVSM, CSM, and LXI); Wi-Fi/Bluetooth models also available for wireless EMR/EHR
Net Weight: 31 lb / 14 kg
Shipping Weight: 40 lb / 18 kg
Shipping Dimensions: 58 in x 20 in x 6 in / 147 cm x 51 cm x 15 cm
Keypad: 6 buttons (Power, Lock/Release, Zero, BMI, Up Arrow, Down Arrow)
Country of Origin: USA
Display Type: Dual-row, seven-segment, clinical-blue LCD
Number of Characters: Weight: 5 digit, 0.75 in (19 mm) high / Height/BMI: 4 digit, 0.4 in (10 mm) high
Operating Environment: Operated Temperature Range: 14 to 104 ºF (-10 to +40 ºC) / Humidity: 0 to 90% non-condensing
Digital Filtering: StableSENSE® Adjustable Filtering
Construction: Column – aluminum white powder coated; base - steel; indicator enclosure - ABS
Certification: NTEP certified weighing accuracy
