Size

• Without Extension Module: 312.5 mm × 312.5 mm × 158.5 mm

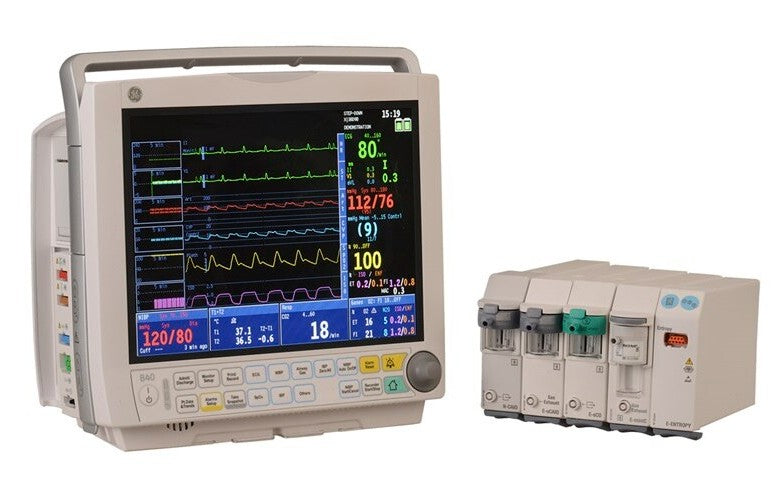

• With Extension Module: 312.5 mm × 352.5 mm × 178.5 mm
• Weight: < 6 kg

Environmental Conditions

• Operating Temperature
  • Normal Operation: 5 to 40 °C (41 to 104 °F)
  • Charging Batteries: 5 to 35 °C (41 to 95 °F)
  • Storage & Transport: -20 to 60 °C (-4 to 140 °F)
• Humidity
  • Operating: 20 to 90% non-condensing
  • Storage & Transport: 10 to 90% non-condensing
• Atmospheric Pressure
  • Operating: 700 to 1060 hPa (525 to 795 mmHg)
  • Storage & Transport: 700 to 1060 hPa (525 to 795 mmHg)

Electrical

• AC Input Voltage: 100 to 240 V ± 10%
• AC Input Frequency: 50 / 60 Hz
• AC Input Power: < 150 VA
• Power Supply: Internal battery or AC power
• Power Cord Type: Cord Connector IEC/EN 60320-1/C13
• Fuse: 250 V, 2.5 Ah
• Battery: Exchangeable lithium-ion, two pieces max
• Battery Life: 300 cycles minimum to 50% capacity
• Charging Time: 2 hours to 90% per battery pack
• Operation Time: Up to 4.5 hours

Recorder

• Power Consumption
  • Standby: < 1.2 W
  • Printing: < 10 W
• Recorder Type: Thermal array
• Resolution
  • Vertical: 8 dots/mm (200 dpi) in non-waveform mode
  • Horizontal: 24 dots/mm (600 dpi) minimum in waveform mode
• Paper Width: 50 mm (printing width 48 mm)
• Waveforms: Selectable 1, 2, or 3 waveforms
• Print Speed: 1, 6.25, 12.5, 25 mm / s

ECG

• Leads Available
  • 3-Lead: I, II, III
  • 5-Lead: I, II, III, aVR, aVL, aVF, and VA
• QRS Detection Range: 0.5 to 5 mV
• QRS Detection Width (Q to S): 40 to 120 ms
• Defibrillation Protection: 5,000 V, 360 J
• Recovery Time: < 5 seconds
• Input Impedance
  • Common Mode: > 10 MΩ @ 60 / 60 Hz
  • Differential: > 2.5 MΩ from 0.67 to 40 Hz
• Common Mode Rejection: 90 dB minimum at 50 Hz
• Tall T Wave Rejection: > 1.4 mV
• ECG Leads Off Detection
  • Active Patient Electrode: < 30 nA
  • Reference Electrode: < 300 nA
